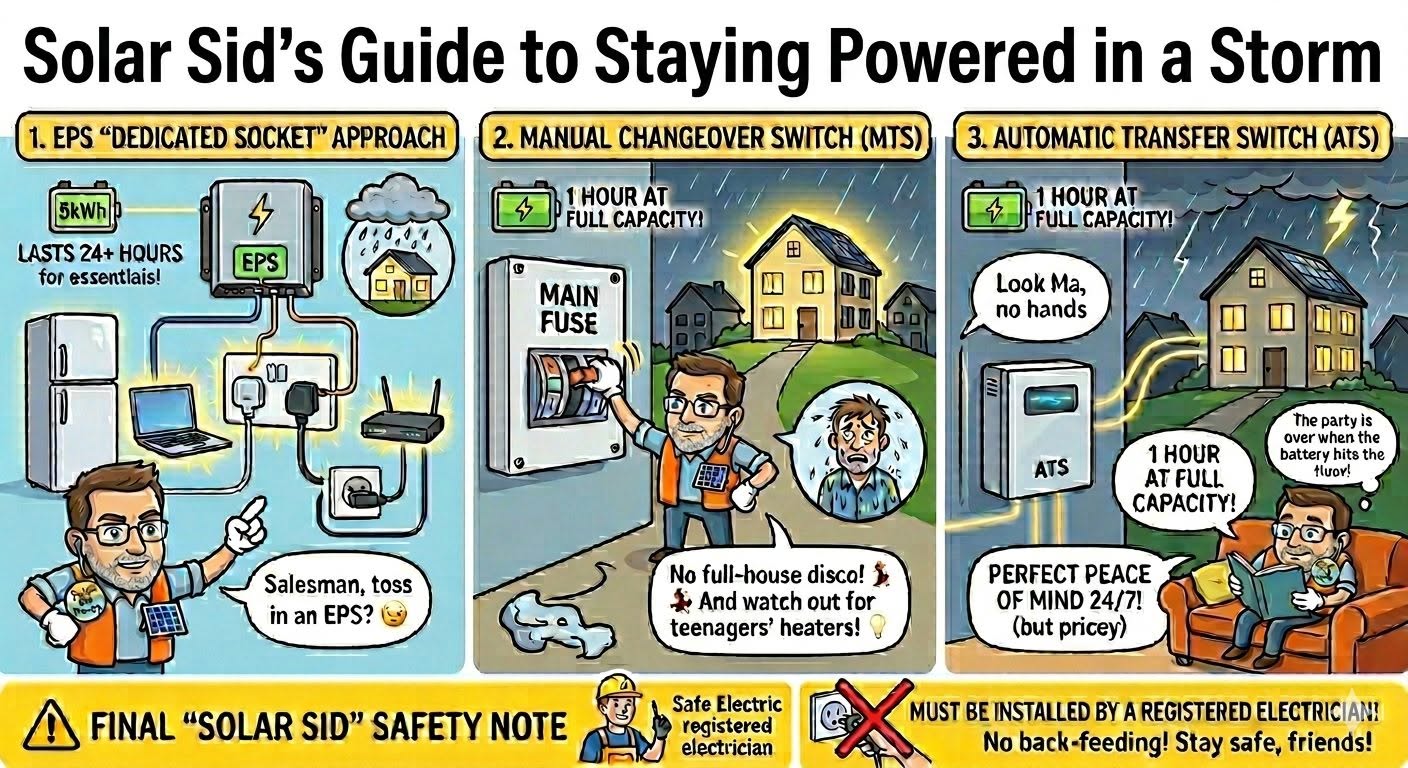

Solar Backup: EPS Sockets, Manual Changeover, or Automatic Transfer?
If you're looking at your solar setup and thinking about the next storm, you've likely come across three ways to keep the lights on. They all aim to keep you powered when the grid goes down, but they come with very different price tags and levels of convenience.
☕ Help keep Solar Sid independent
Hi, I'm Dale McWilliams (Solar Sid). This site has no ads and no installer sponsors — it's 100% independent. If the guides helped you, you can buy me a coffee to help cover domain and hosting and keep it free for everyone.
Here is the breakdown — remember I'm no expert, just a solar nut trying his best to explain solar to you in an easy-to-read format. Always ask for advice from a registered electrician.
1. The EPS "Dedicated Socket" Approach
Many modern hybrid inverters have a dedicated EPS port. This is a secondary output on the inverter designed to provide reliable backup power.
How it works: Your electrician wires this port to a specific, dedicated wall socket (often a double socket) in your utility room. This output can be energised 24/7, acting as a continuous, protected supply.
The Advantage: It's a clean, efficient way to create a “UPS zone.” Because it's constantly live, if the grid goes down, your connected devices (like your Wi-Fi, fridge, or home office gear) won't even flicker. If you're only running a fridge, TV, a few phone chargers, and your Wi-Fi, this can easily last over 24 hours on a standard 5kWh battery — long enough to wait out even the most stubborn Irish storm.
Solar Sid Pro-tip: Often, you can convince the salesman to install an EPS at no extra cost if it means him getting the sale — it's worth asking!
The Constraint: It's not “whole house.” You have to manually plug in the specific appliances you want to use, and you have to watch your total load to ensure you don't trip the inverter. It won't power the electric shower, no matter how much you ask it nicely!
2. The Manual Changeover Switch (MTS)
A manual switch is installed at the main fuse board.
How it works: It acts as a physical gatekeeper between the grid and your house. When you flip the lever, it disconnects your home from the ESB grid and connects it to your inverter's EPS output.
The Advantage: It's a “whole house” solution. Every light and socket in your home gets power.
The Constraint: You have to be home to flip the switch, and you have to be “load aware.” Your inverter likely can't run your whole home at full capacity, so you'll need to be disciplined about what you turn on. Keep in mind that if you're running your inverter flat out off the battery, a 5kWh battery is only going to last you about an hour. That's plenty of time to find the candles or brew a tea, but don't go planning a full-house disco. Also, watch out — make sure your teenager doesn't turn on a heater in their bedroom and drain all the juice from your battery before you realise it!
3. The Automatic Transfer Switch (ATS)
This is the “Look Ma, no hands” version of the changeover switch.
How it works: An ATS is a smart relay that constantly monitors the grid. The moment it detects a power cut, it automatically isolates your home from the grid and switches your supply to the inverter's EPS output — all in a matter of milliseconds.
The Advantage: Seamless, 24/7 convenience. You don't need to be home to manage it, making it perfect for protecting sensitive equipment or keeping the house running while you're out.
The Constraint: They are the most expensive option, involving more complex hardware and specialised commissioning. Keep in mind that if you're running your inverter flat out off the battery, a 5kWh battery is only going to last you about an hour. Even with the fancy tech, you can't defy the laws of physics — when the battery hits the floor, the party is over.
A Final "Solar Sid" Note on Safety
Whatever route you choose, it must be installed by a Safe Electric registered electrician.
Because your inverter will be creating its own “island” of power, the earthing arrangements must be verified to ensure safety. Also, never try to “back-feed” your home by plugging an inverter output into a standard wall socket — that's a recipe for a house fire or, worse, electrocuting an ESB linesman working on the local pole. Nobody wants that on their conscience.
My advice? Do your sums. If you're just looking to survive the odd winter outage, an EPS socket is a brilliant, thrifty, and seamless solution. If you want the comfort of the whole house staying powered without running extension leads, go for a changeover switch — manual if you're on a budget, or automatic if you want that “set it and forget it” peace of mind. ☀
